DNA Stage 2 Airbox Cover & High-Performance Air Filter for Ducati Hypermotard 698 Mono (2023–26)

DNA Stage 2 Airbox Cover & High-Performance Air Filter for Ducati Hypermotard 698 Mono (2023–26)

The DNA Stage 2 Airbox Cover & High-Performance Air Filter for Ducati Hypermotard 698 Mono (2023–26) is a high-flow Stage 2 combination designed for Race use only. The kit includes both the DNA Air Filter and Cover, replacing part of the original air box to significantly increase airflow to the engine.

DNA combines its advanced FCd (Full Contour design) with a Stage 2 Combo setup. This design allows the filtering material to follow the air box contour and use the available surface as an active filtering area. As a result, the design helps eliminate dead spots that can cause turbulence while supporting increased airflow and filtration efficiency. Visit our website for more products Dirt Street.

Stage 2 Combo Design

The DNA Stage 2 Airbox Cover & High-Performance Air Filter for Ducati Hypermotard 698 Mono (2023–26) includes an Air Filter and Cover. The Stage 2 kit replaces part of the air box and focuses on increasing airflow to the engine.

The supplied information lists a 161.40% increase in airflow compared with the stock filter application. The stock air box with the DNA Stage 2 Combo delivers 8600 litres/min, while the stock air box with the OEM filter delivers 3290 litres/min under the specified test conditions.

Advanced FCd Air Filter

The DNA Stage 2 Combo uses DNA’s advanced FCd (Full Contour design). The filtering material follows the contour of the air box and uses the complete air box surface as an active filtering area.

This design helps eliminate dead spots that can cause turbulence. Therefore, the filter supports increased airflow while maintaining high filtration efficiency.

98%-99% Filtration Efficiency

The DNA Stage 2 Airbox Cover & High-Performance Air Filter provides 98%-99% filtration efficiency. DNA achieves this filtration level with four layers of DNA Cotton.

The supplied information lists this filtration efficiency as ISO 5011 tested. The filter is also supplied pre-oiled from the factory, with the correct amount of DNA oil applied individually to each filter.

High-Flow Race Application

DNA designed this Stage 2 kit as a High Flow product for Race use only. The filter is also described as spark safe for racing use on highly tuned engines.

The supplied airflow figures show the difference between the Stage 2 Combo and the OEM stock filter application. The DNA setup produces 8600 litres/min, compared with 3290 litres/min for the OEM setup.

Easy Installation

Installation is straightforward. Riders can follow the installation instructions included in the workshop manual. DNA also includes additional installation instructions in the packaging.

Technical Specifications

• Product: DNA Stage 2 Airbox Cover & High-Performance Air Filter for Ducati Hypermotard 698 Mono (2023–26)
• Oil: Supplied pre-oiled
• Filter Use: Race use only

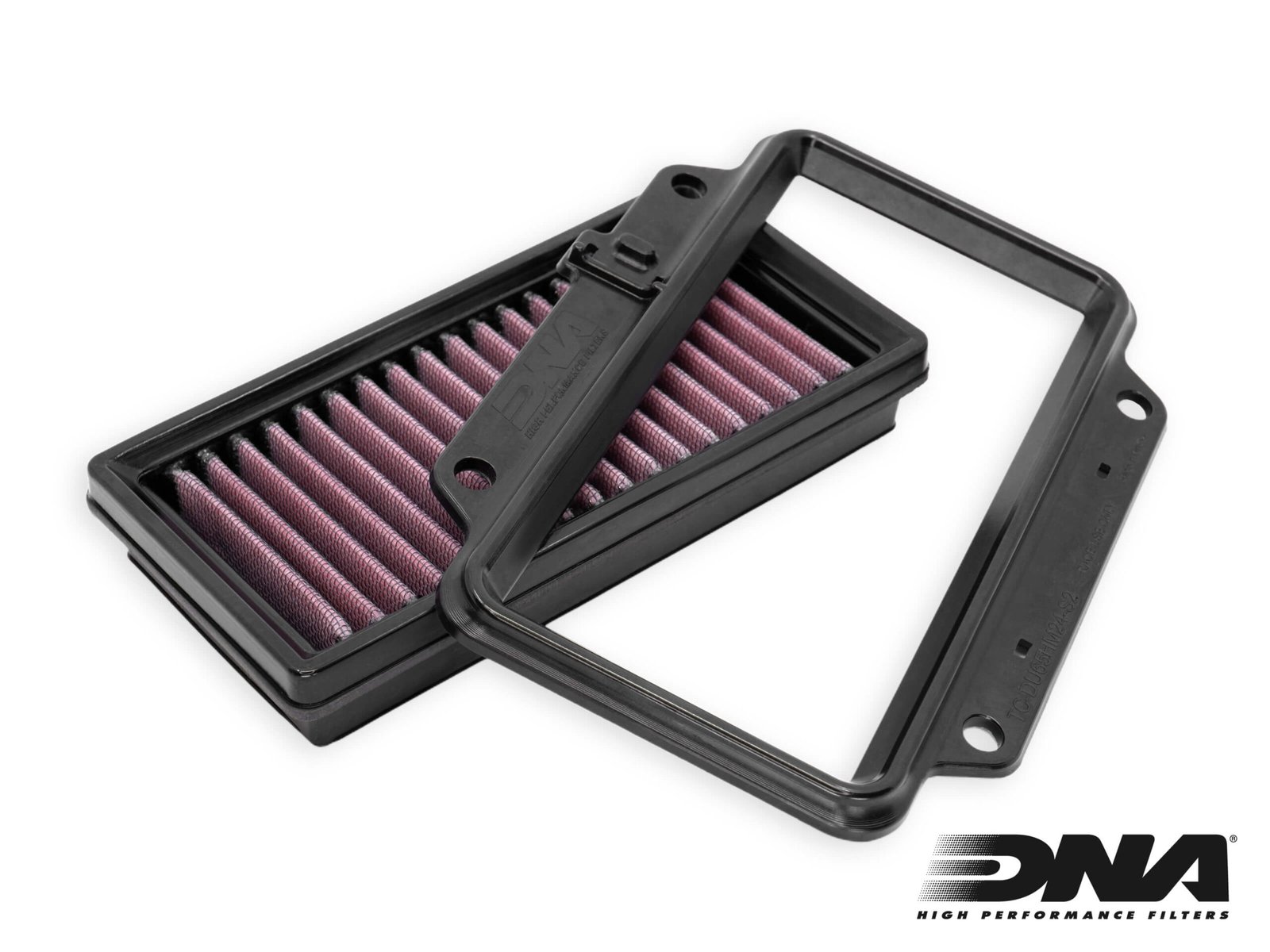

• Box Includes: Air Filter & Cover
• Filter Design: DNA Advanced FCd
• OEM Cross Reference: 42610751A FILTER, 8291R811A CASE, 24717531B COVER
• Filtering Efficiency: 98%-99%
• Increase in Airflow: 161.40%
• DNA Air Filter Airflow: 8600 litres/min
• OEM Air Filter Airflow: 3290 litres/min
• Application: High Flow, Race use only

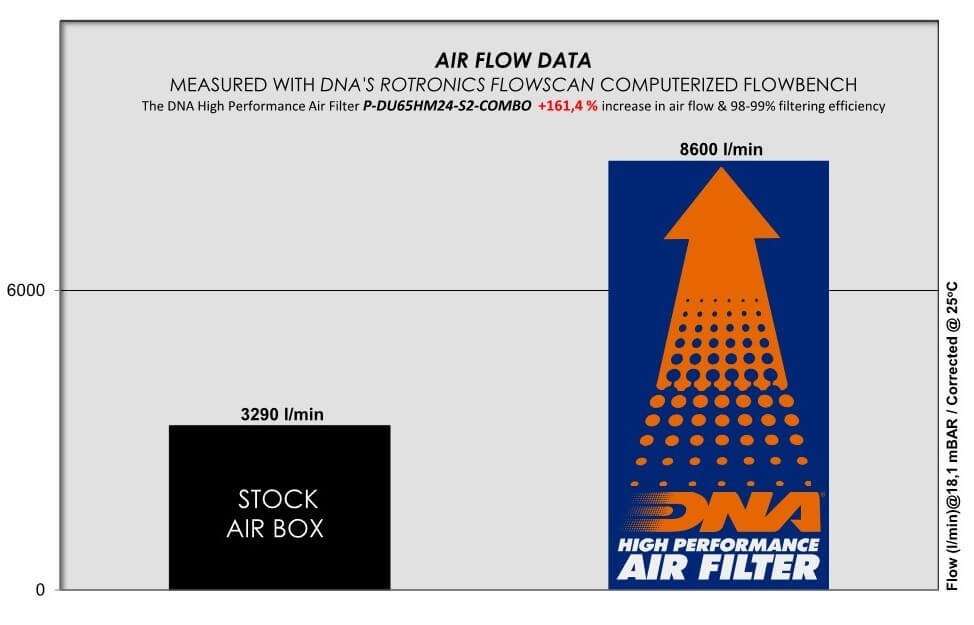

Airflow Data

The supplied test data shows a 161.40% increase in airflow for the DNA Stage 2 Combo.

DNA Stage 2 Combo: 8600 litres/min at 18.1 mBAR, corrected at 25°C.

OEM stock filter application: 3290 litres/min at 18.1 mBAR, corrected at 25°C.

Conclusion

The DNA Stage 2 Airbox Cover & High-Performance Air Filter for Ducati Hypermotard 698 Mono (2023–26) combines a Stage 2 air box cover with a high-flow DNA filter. Its advanced FCd design, four-layer DNA Cotton construction and 98%-99% filtration efficiency support the high-flow setup.

With 161.40% increased airflow over the stock filter application and a supplied pre-oiled design, this Stage 2 Combo provides a high-flow air intake solution specifically intended for Race use only.
