Ducabike Brake Plate Radiator

Ducabike Brake Plate Radiator

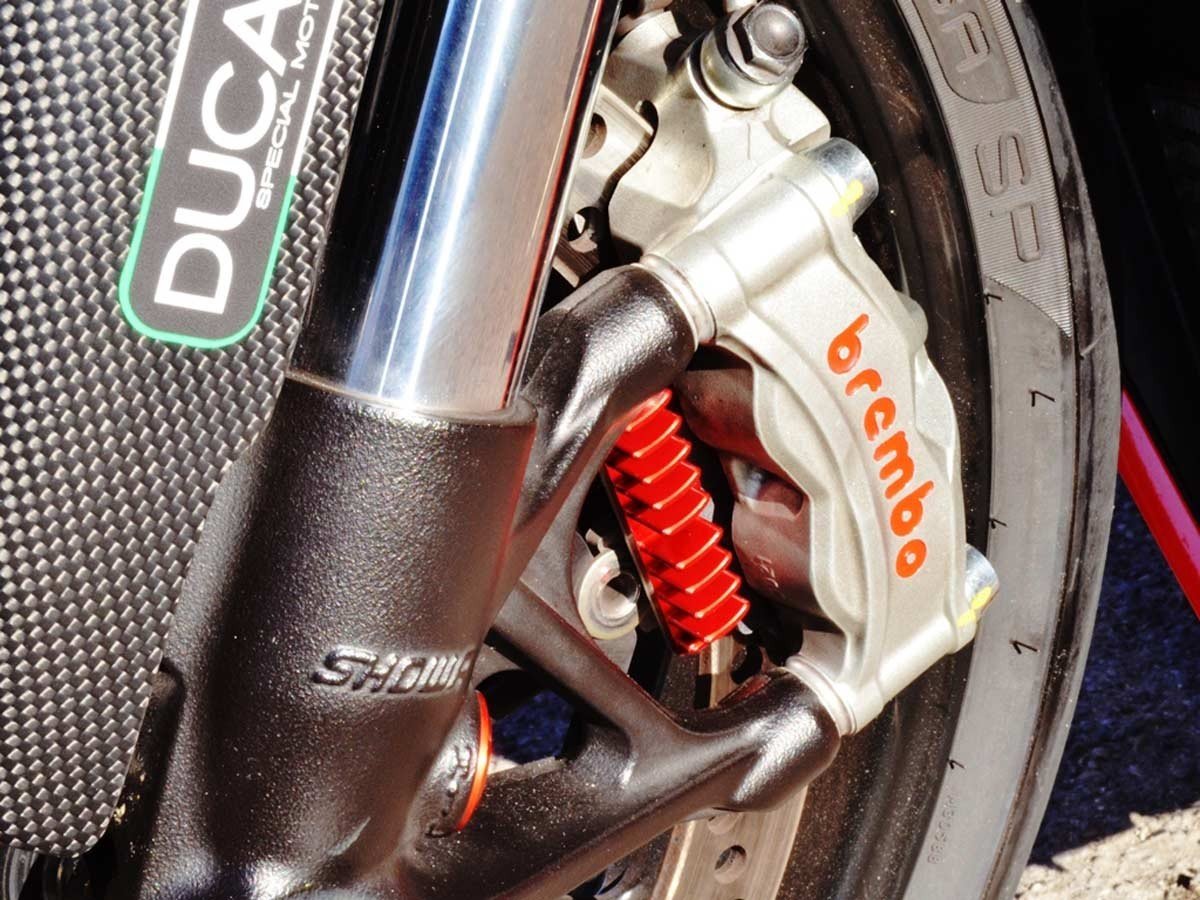

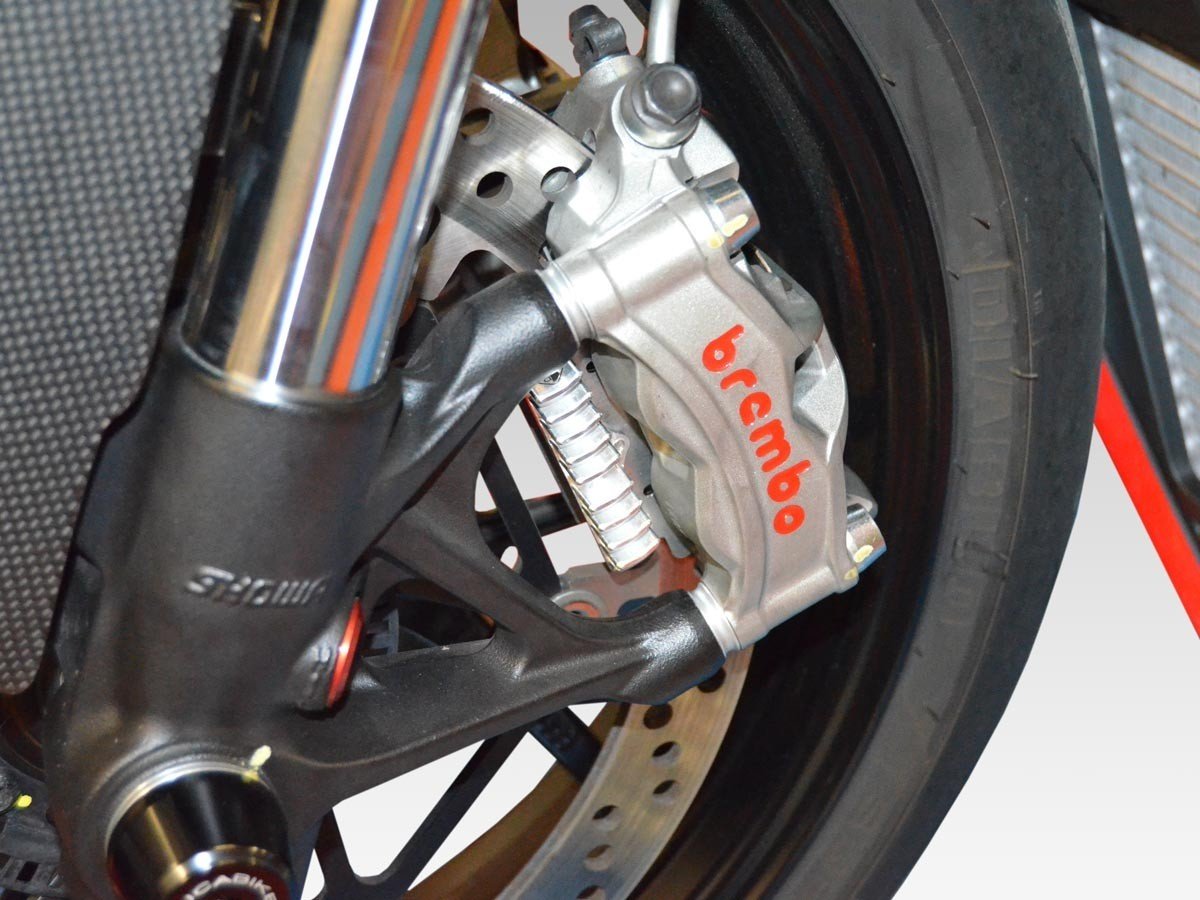

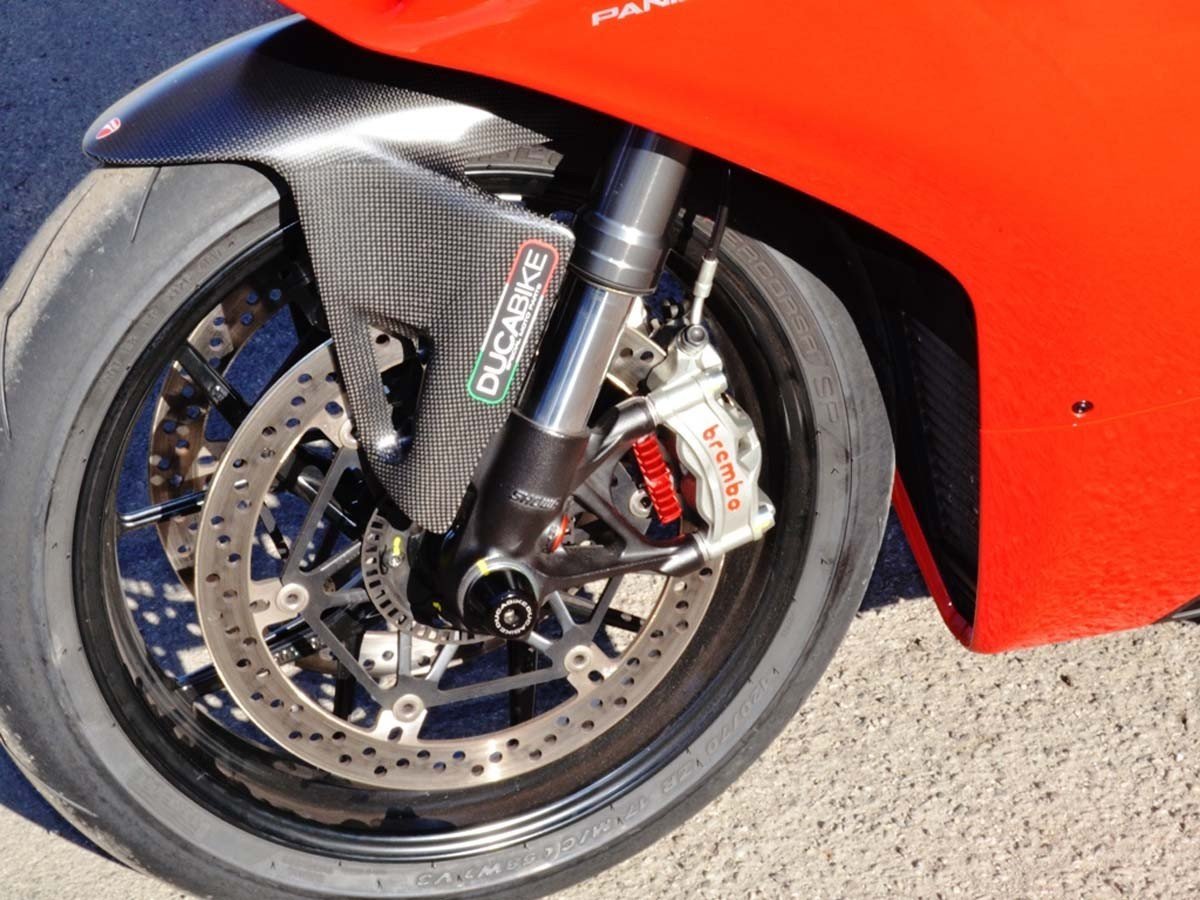

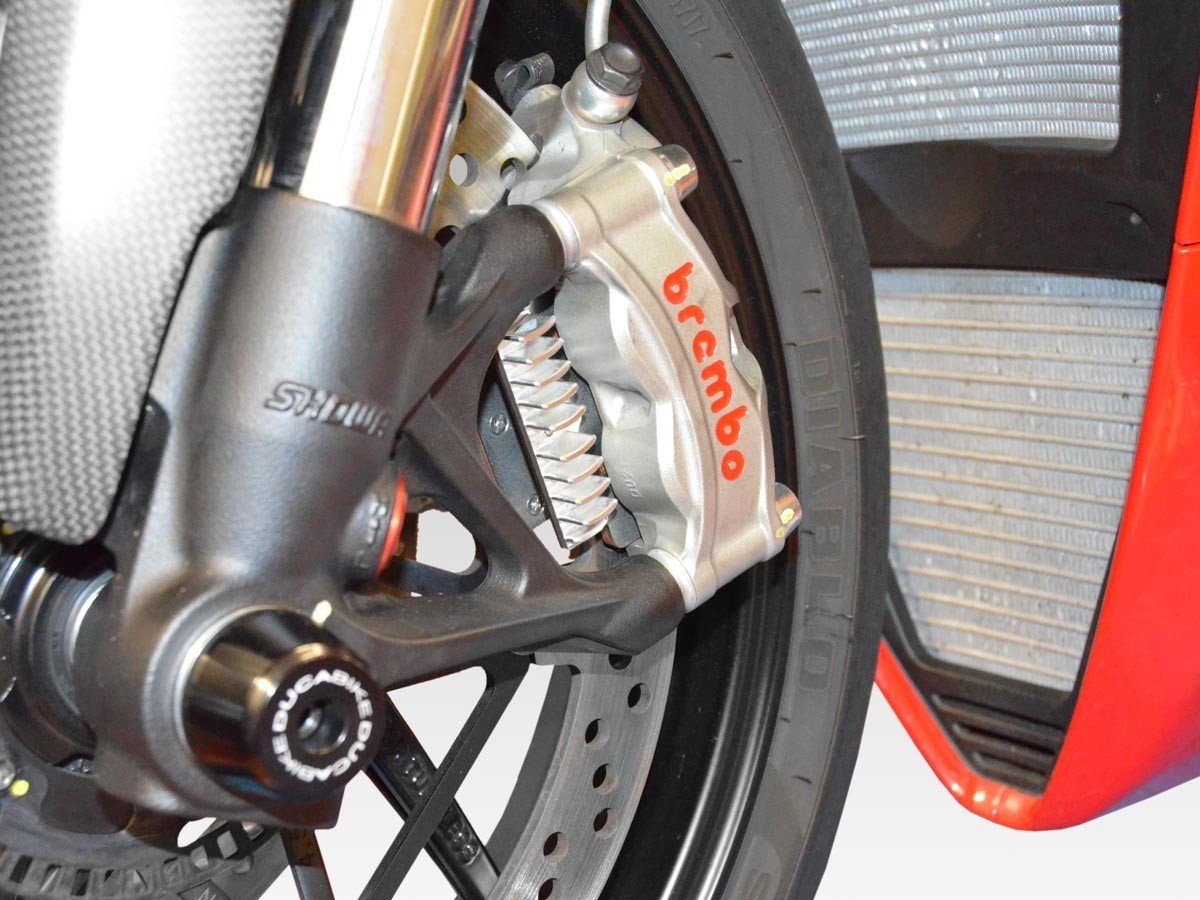

Improve brake temperature management with the Ducabike Brake Plate Radiator, a specially engineered component designed to reduce heat transfer from the brake pads to the caliper while supporting pad cooling. Its hybrid construction combines thermal steel with a lightweight aluminium alloy to help manage heat during braking.

Developed through extensive road and track testing, this design addresses heat accumulation around the brake pad, caliper piston and brake fluid. According to Ducabike’s testing, the system reduced brake pad temperatures by up to 20°C and helped improve braking consistency. It also showed potential to extend brake pad life by up to 25% under the tested conditions.

Explore more motorcycle parts and accessories at Dirt Street.

Dual-Material Design for Heat Management

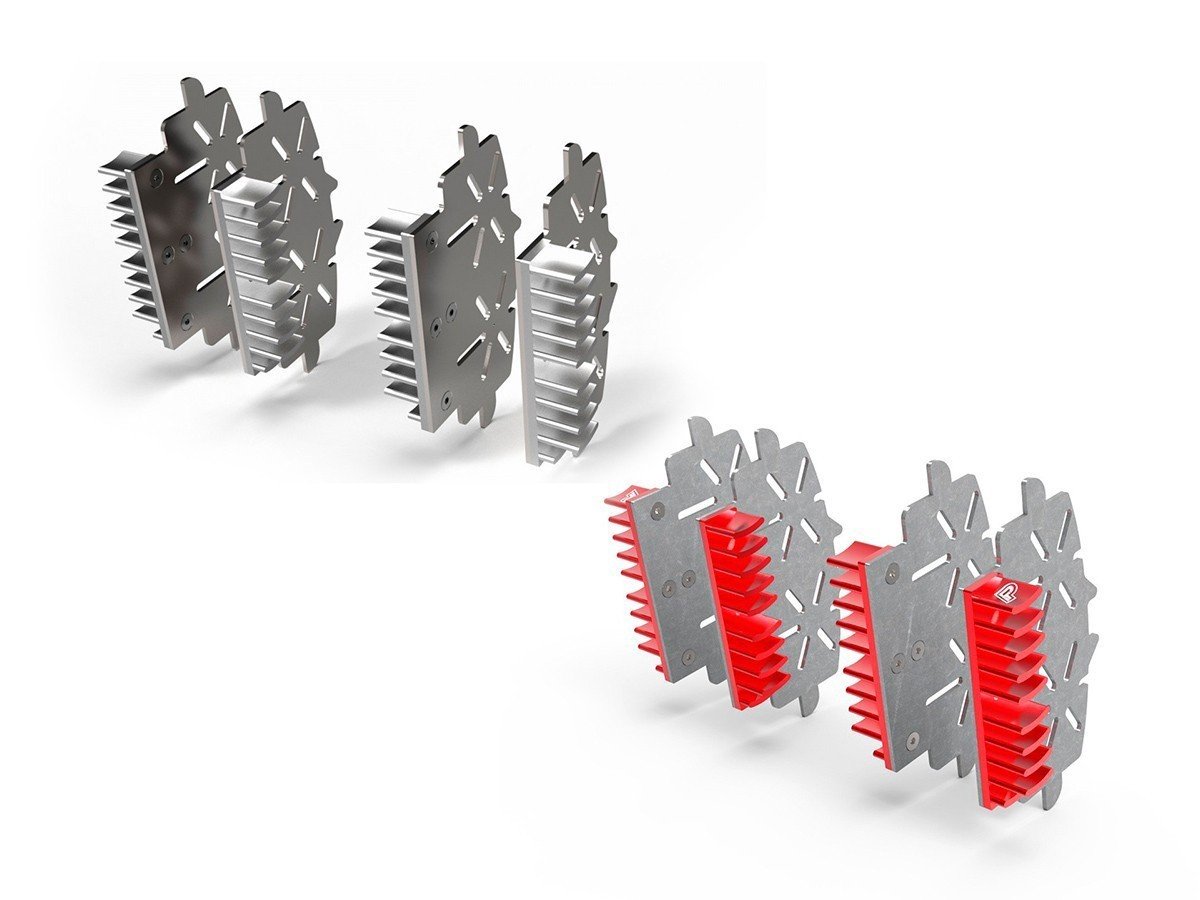

The Ducabike Brake Plate Radiator uses two metal elements to balance thermal insulation and heat dissipation. The main body consists of special thermal steel, while a lightweight aluminium alloy component assists heat exchange.

This combination aims to limit heat transfer from the brake pad towards the caliper and brake fluid. At the same time, the aluminium section helps dissipate heat away from the braking assembly. As a result, the design addresses both heat insulation and cooling.

Precision-Machined Thermal Steel

The main thermal steel component is laser-cut and CNC-machined. Its slots serve two purposes: they reduce the contact surface and help release hot air trapped inside the brake piston cavity.

Consequently, the design helps reduce heat accumulation around the piston and limits heat propagation towards the brake fluid. These features support the product’s goal of managing high temperatures during demanding braking conditions.

Lightweight Aluminium Heat Sink

The thermal steel body connects to a specially selected aluminium alloy heat sink. Ducabike uses this material for its high thermal conductivity, helping the component exchange and dissipate heat.

Together, the two materials create a hybrid arrangement intended to balance thermal performance, weight and ease of installation.

Developed Through Road and Track Testing

Ducabike developed the Brake Plate Radiator over approximately one year. During development, the company evaluated different materials and configurations using data-acquisition equipment and thermal imaging cameras.

The testing programme included more than 500 hours on the circuit and 20,000 km of road testing across six motorcycles and different riding conditions. According to the manufacturer, the final design reflects this testing and comparison process.

Reported results included lower brake pad temperatures, improved stability at the start of braking, better pad rollback and a reduction in residual brake drag. Ducabike also reported up to 25% longer brake pad life under its test conditions. Actual results may vary depending on the motorcycle, brake components and riding conditions.

Product Compatibility

Check your motorcycle’s exact model and year before ordering.

Aprilia

RSV4 RF (2015–2016) and RSV4 RR (2015–2020).

Ducati DesertX and Diavel

DesertX 937 (2022–2025), DesertX Discovery (2025), DesertX Rally (2024–2025), Diavel 1200 (2011–2018), Diavel 1260 and 1260 S (2019–2022), Diavel V4 (2023–2026) and Diavel V4 RS (2026).

Ducati Hypermotard, Monster and Multistrada

Hypermotard 1100 EVO SP (2010–2012), Hypermotard 1100 S (2008–2009), Hypermotard V2 SP (2026), Monster 1200 R (2016–2019), Monster 1200 S (2014–2021), Multistrada 1200 S and 1200 S Pikes Peak (2015–2017), Multistrada V4 RS (2024–2026) and Multistrada V4 S Pikes Peak (2022–2026).

Ducati Streetfighter

Streetfighter 1098 (2009–2012), 1098 S (2009–2013), V4 and V4 S (2020–2024), V4 SP (2022) and V4 SP2 (2023–2024).

Ducati Superbike and Panigale

1098 (2007–2008), 1098 R (2008–2009), 1098 S (2007–2008), 1198 (2009–2011), 1198 S (2009–2010), 1198 SP (2011–2012), 848 EVO (2011–2013), 848 EVO Corse (2012–2013), Panigale 1199 (2012–2014), 1199 R (2013–2014), 1199 S (2012–2015), 1299 and 1299 S (2015–2017), Panigale R (2015–2017), V4 and V4 S (2018–2024), V4 R (2019–2020, 2023–2024), V4 SP2 (2022–2024) and V4 Speciale (2018–2019).

Ducati XDiavel

XDiavel Nera (2022–2024), XDiavel S (2016–2024) and XDiavel V4 (2026).

Kawasaki

Ninja H2 (2015–2022), Ninja H2R (2015–2024), Ninja H2 SX and H2 SX SE (2018–2023), ZX-10R (2016–2019) and ZX-10RR (2017–2018).

KTM

1290 Super Duke GT (2016–2022), 1290 Super Duke R (2014–2023) and 1290 Super Duke R EVO (2022–2023).

MV Agusta

Brutale 1000 RR (2020–2024), Brutale 1000 RS (2022–2024), Brutale 1000 Serie Oro (2019–2020), F3 675 (2015–2017), F3 675 RC (2015–2018), F3 800 and F3 800 RC (2015–2017), and Rush 1000 (2021–2024).

Suzuki

GSX-R 1000 (2015–2018), GSX-S 1000 (2016–2018) and GSX-S 1000 Katana (2019–2020).

Triumph

Speed Triple 1200 RR (2022–2024), Speed Triple 1200 RS (2021–2026) and Speed Triple 1200 RX (2025–2026).

Overview

The Ducabike Brake Plate Radiator combines thermal steel and high-conductivity aluminium to help manage heat around the brake pads and caliper. Its slotted design supports hot-air release, while the aluminium heat sink assists thermal dissipation.

Developed through extensive road and circuit testing, it offers a specialised solution for compatible motorcycles. Manufacturer-reported improvements include reduced pad temperatures and longer pad life under tested conditions. Confirm fitment before purchase and have the component installed by a qualified technician familiar with your motorcycle’s braking system.

Weight	0.5 kg
Dimensions	15 × 10 × 5 cm
Color Option	Red, Silver
Country of Origin	Italy
